Fixed Wiring Cable
Fixed Wiring Cable
Application: Suitable for surface wiring indoor or outdoor.
Voltage Rating: 300/500V
Temperature Rating: -15℃to+70℃
Min. laying temperature: 0℃
Standard: IEC227

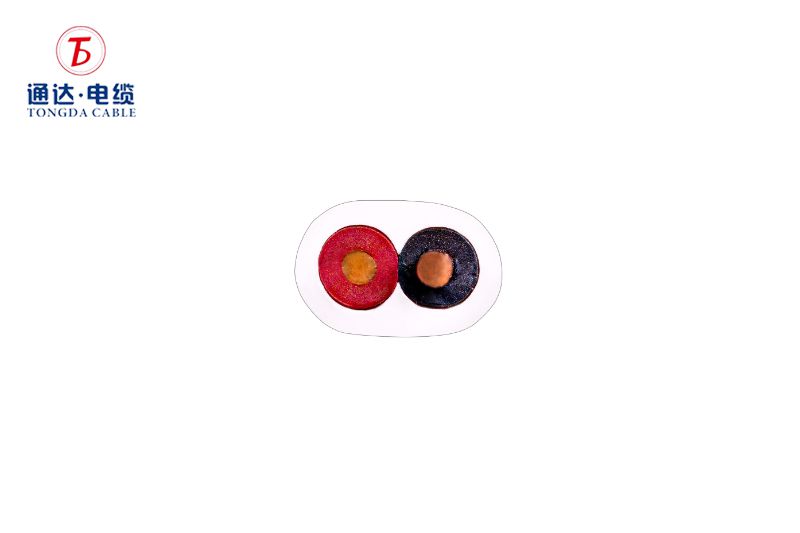

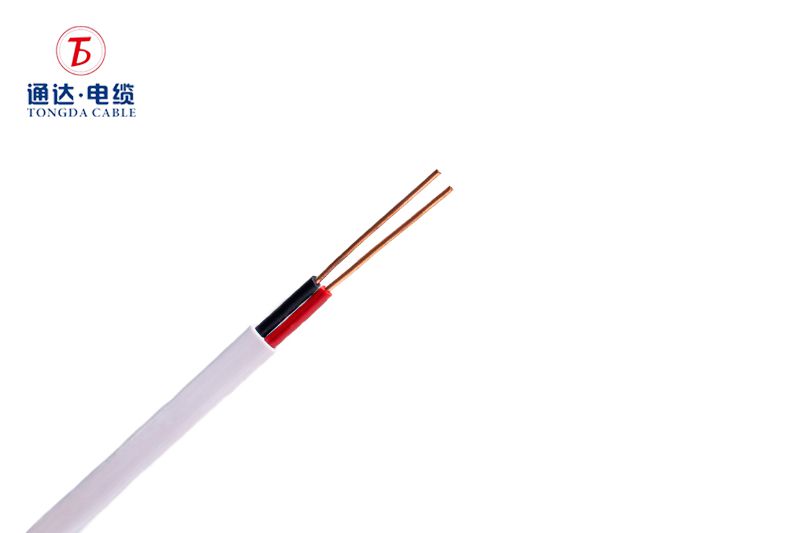

Product Overview Tongda BVVB flat cable is designed for indoor and outdoor surface fixed wiring scenarios. It adopts a double-layer PVC insulation sheath structure (300/500V) and is suitable for surface-mounted lines, pipe systems and internal wiring of equipment in dry or humid environments. Its flat shape (thickness is only 3.5-6.2mm) can fit tightly against walls, ceilings or metal trough boxes, saving 30% of installation space, meeting the dual needs of commercial buildings, industrial plants and home decoration for concealment and safety.
Product Parameter | No.of cores | Conductor | Nominal Thickness of Insulation | Approx.OD of cable | Approx.Weight of Cable | |
| Size | No./Dia. of Wire | ||||
| mm² | mm | mm | mm | kg/km | |
| 2 | 0.75 | 1/0.97 | 0.6 | 4.6×7.1 | 43 |
| 1 | 1/1.13 | 0.6 | 4.8×7.4 | 50 | |
| 1.5 | 1/1.38 | 0.7 | 5.3×8.5 | 66 | |
| 2.5 | 1/1.78 | 0.8 | 6.2×10.1 | 98 | |
| 4 | 1/2.25 | 0.8 | 6.7×11.1 | 133 | |
| 4 | 7/0.85 | 0.8 | 6.9×11.5 | 143 | |
| 6 | 1/2.76 | 0.8 | 7.5×12.5 | 182 | |
| 6 | 7/1.04 | 0.8 | 7.8×13.0 | 195 | |
| 10 | 7/1.35 | 1.0 | 9.5×16.2 | 305 | |
| 3 | 0.75 | 1/0.97 | 0.6 | 4.6×9.6 | 61 |
| 1 | 1/1.13 | 0.6 | 4.8×10.1 | 71 | |
| 1.5 | 1/1.38 | 0.7 | 5.3×11.7 | 96 | |
| 2.5 | 1/1.78 | 0.8 | 6.2×14.0 | 144 | |
| 4 | 1/2.25 | 0.8 | 7.0×15.8 | 201 | |
| 4 | 7/0.85 | 0.8 | 7.1×16.3 | 216 | |
| 6 | 1/2.76 | 0.8 | 7.5×17.5 | 268 | |
| 6 | 7/1.04 | 0.8 | 7.8×18.2 | 288 | |
| 10 | 7/1.35 | 1.0 | 9.5×23.0 | 455 | |
Advantages Space optimization and installation convenience
The flat structure (width: 10-22mm, depending on the number of cores/cross-sectional area) is suitable for narrow spaces, such as distribution box wiring and LED light strip grooves, reducing the risk of damage to the decorative layer due to line protrusions.
Pre-printed meter marks and color marks (red/blue/yellow-green, etc.) support fast length measurement and phase identification, reducing the error rate of electrician installation.
Multi-environment durability
Passed the IP44 protection level test (IEC 60529), it can be used for a long time in semi-open-air scenes such as eaves and awnings, and the sheath is acid and alkali resistant (no corrosion after immersion in 5% HCl solution for 96 hours).
-15℃ low temperature cold bending test (IEC 60811-1-4) ensures that the insulation layer does not crack during winter construction.
Global compliance guarantee
Basic certification: IEC 227, CE (EN 50525-2-11), RoHS
Regional expansion: Support GOST-R (Russia), SASO (Saudi Arabia), IRAM (Argentina) and other certification labels to help fast customs clearance.
Customized Services
Flexible configuration: 1-3 cores (1.5-6mm²), sheath color optional gray/black/orange and other 6 kinds, support LOGO printing and segmented packaging (30m/50m/100m).
Quality traceability: Each roll of cable comes with an independent batch number, and raw materials (such as Wanfeng Copper C1100 copper) and third-party test reports (TUV/UL) can be queried online.
