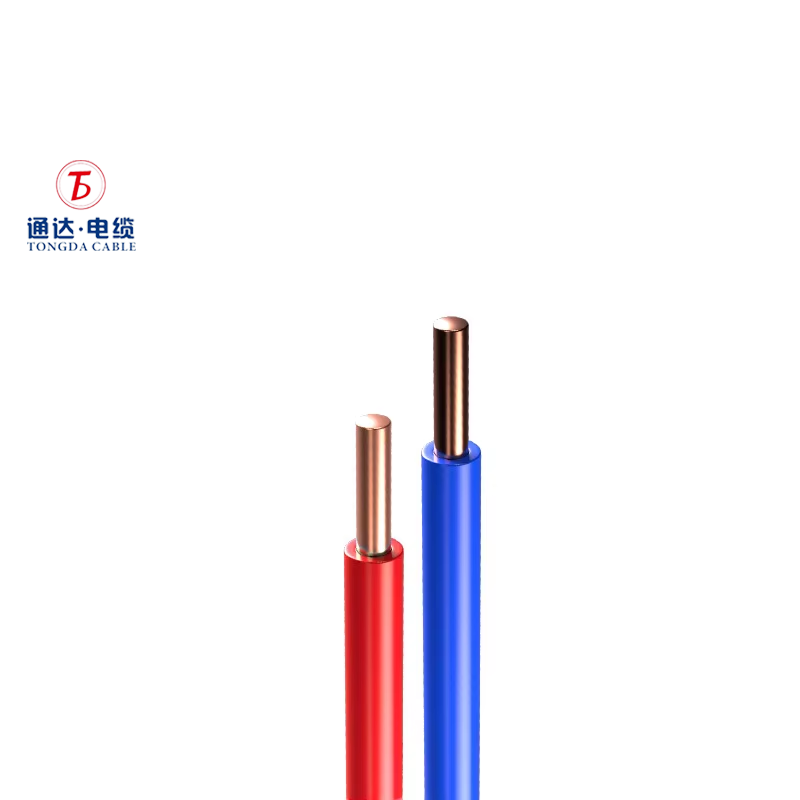

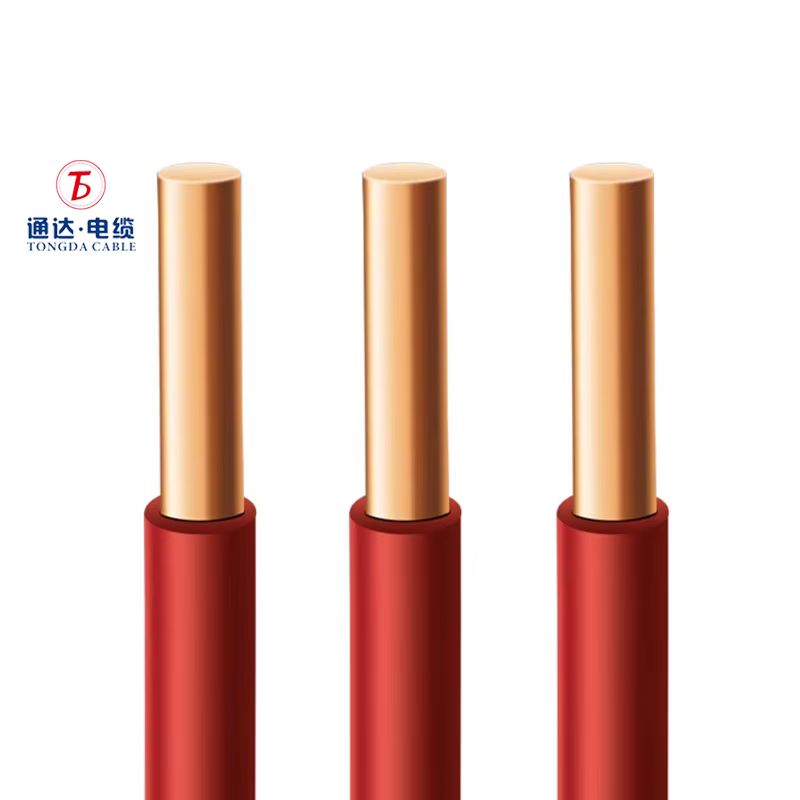

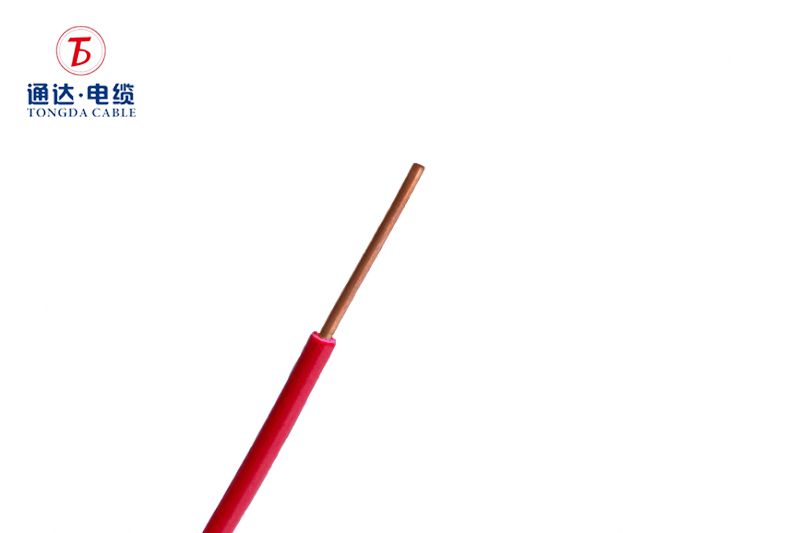

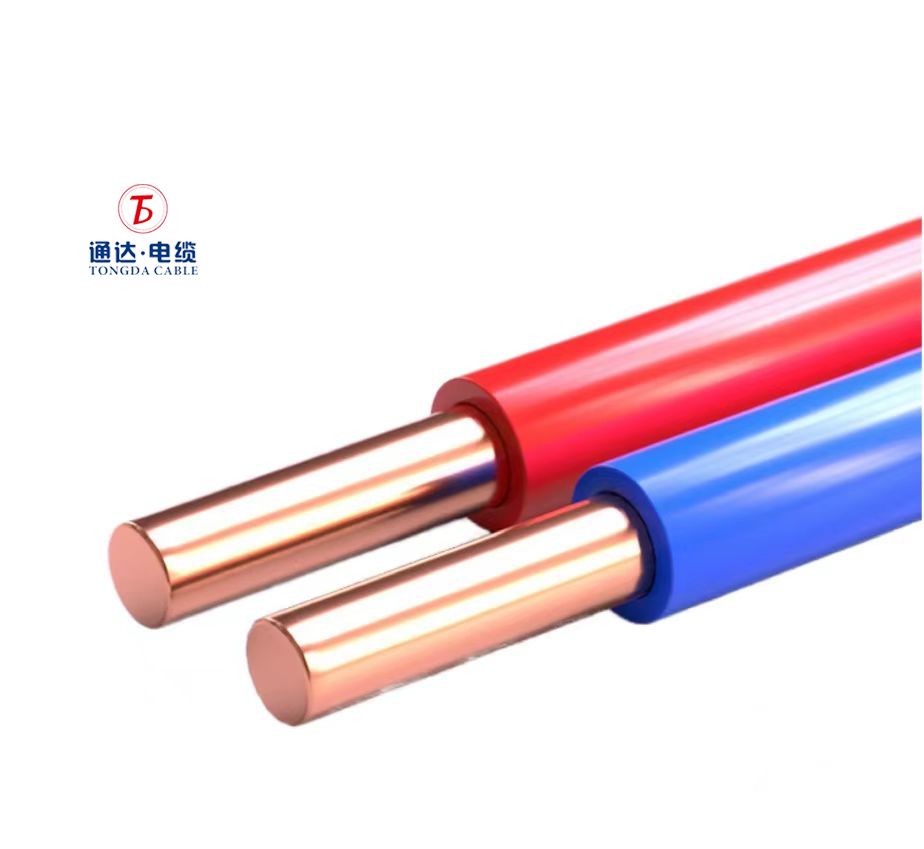

PVC Insulated Single-core Non-sheathed Cable (BV)

PVC Insulated Single-core Non-sheathed Cable (BV)

Application: CU/PVC cable is widely used for power and lighting circuits and building wiring, especially in trunk and conduit, it is ideal for the internal wiring of appliances.

Voltage Rating: 300/500V&450V/750V

Temperature Rating: -15℃to+70℃

Min. laying temperature: 0℃

Standard: IEC 60227

Color: red, blue, green, yellow, black, yellow/green, brown

Inquire Now

Download

Product Overview

Tongda’s BV Cable is the backbone of modern electrical installations, engineered for commercial buildings, residential projects, and appliance manufacturing. With dual voltage ratings (300/500V & 450/750V) and IEC 60227 compliance, this CU/PVC cable ensures safe, durable power distribution in trunking systems, conduit wiring, and internal appliance circuits.

Product Parameter

Item	Contents
Application	power and lighting circuits and building wiring
Voltage Rating	450V/750V
Temperature Rating	-15℃to﹢70℃
Conductor Material	Copper
Insulation Material	PVC (Polyvinyl Chloride)
Insulation Colour	Red, Yellow, Blue, Green, Black, Yellow/Green
Standard	IEC 60227
Brand Name	TongDa
Place of Origin	Guangdong, China

FAQs

Q: Can you supply CE-marked cables for EU projects?

A: Yes – We pre-certify all BV cables to CE Low Voltage Directive 2014/35/EU. Custom markings (e.g., HAR) available.

Q: How do you prevent insulation cracking in cold climates?

A: Our PVC compound passes -15°C cold impact tests (IEC 60811-1-4), with anti-UV additives for outdoor conduits.

Get in Touch

If you can't find the electrical cable you want, please leave a message or contact us. We have a dedicated technical team to serve you.
