Multi Core XLPE Insulated Steel Wire Armored PVC Sheated Power Cable

Multi Core XLPE Insulated Steel Wire Armored PVC Sheated Power Cable

Application: Used in power networks, underground, outdoor and indoor application and for use in cable ducting.It can bears pulling force and pressure.

Voltage Rating: 0.6KV/1KV

Temperature Rating: -15℃to+90℃

Standard: IEC 60502

Insulation Color: Natural or upon request of client

Inquire Now

Download

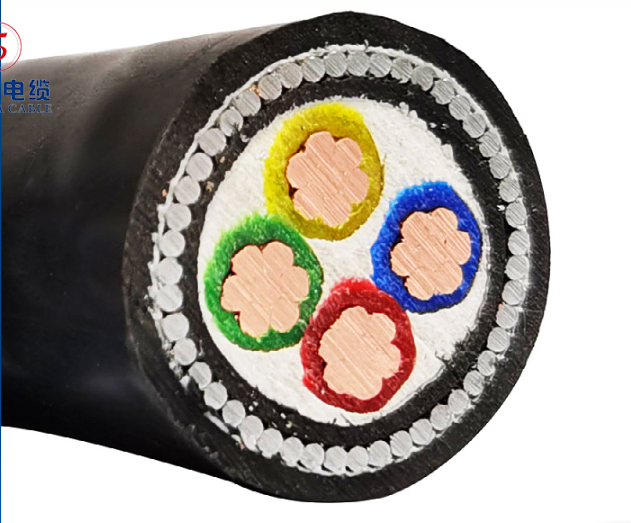

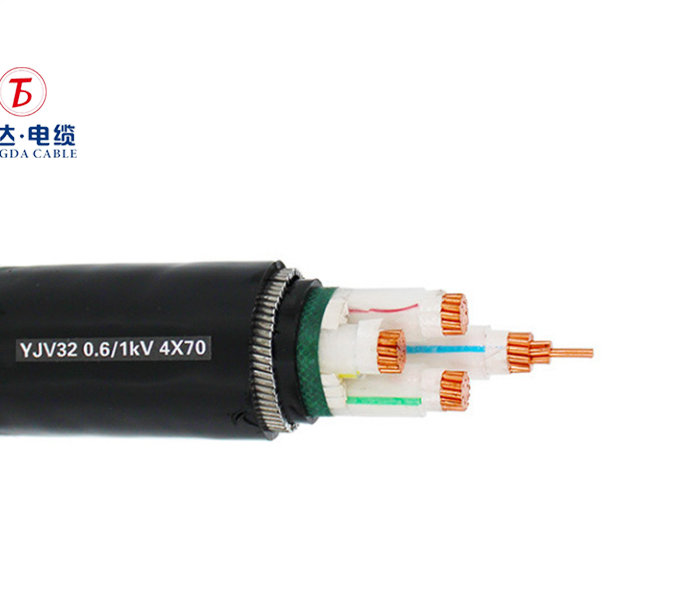

Multi-Core XLPE Insulated Steel Wire Armoured PVC Sheathed Power Cable

Our Multi-Core XLPE Insulated Steel Wire Armoured (SWA) Power Cables are engineered for heavy-duty power distribution in harsh environments. Ideal for underground, outdoor, indoor, and duct applications, these IEC 60502-compliant cables deliver excellent mechanical protection, stability, and longevity. Zhongshan Tongda provides factory-direct supply, OEM customization, and fast lead times.

Applications

Power networks in industrial and urban infrastructures

Direct burial and cable ducting installations

Indoor and outdoor use including commercial buildings, factories, and public utilities

Installations requiring resistance to tensile force, compression, rodents or external mechanical hazards

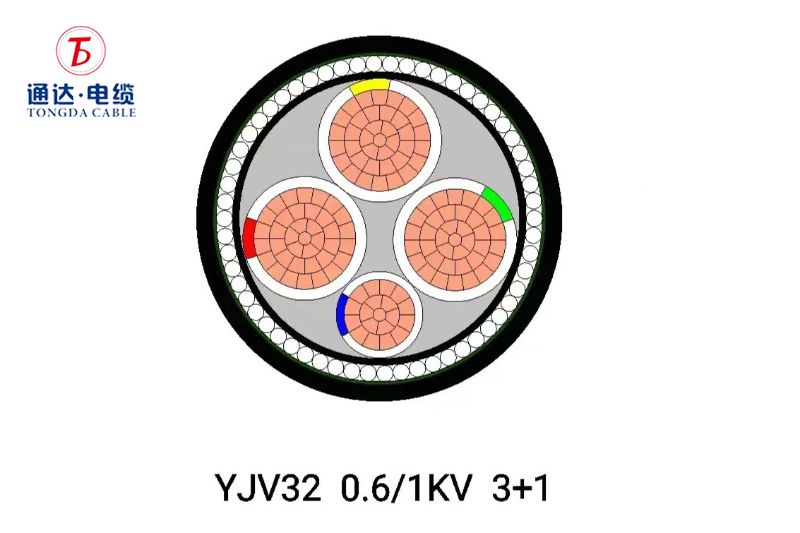

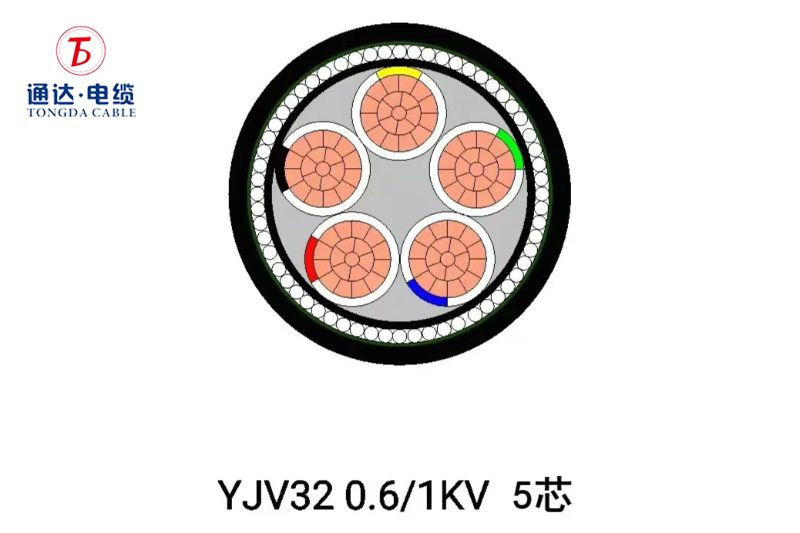

Construction & Material Specifications

Standard: IEC 60502-1 (also available BS5467, BS6724, AS/NZS5000.1)

Conductor: Copper or Aluminum, class 1 or 2 as per IEC 60228

Insulation: XLPE — rated up to 90 °C for continuous operation

Bedding & Sheath: Inner PVC bedding; Outer PVC sheath (black) — flame-retardant or low-smoke halogen-free options available

Armour: Galvanized steel wire armour provides enhanced tensile strength and mechanical protection

Technical Data & Size Options

Core Configuration	Cross-Section (mm²)	Weight / Resistance
2-core	4–400 mm²	From ~13 mm to ~56 mm, weight varies—see datasheets
3-core / 4-core	4–300 mm²	Detailed conductor resistance & weights available — refer to technical datasheet

Contact us for precise diameter, weight, and resistance data on your desired configuration.

Performance Characteristics

Rated Voltage: 0.6 kV / 1 kV

Operating Temperature: -15 °C to +90 °C; Short-circuit tolerance up to 250 °C

Bending Radius: 6× overall diameter (fixed installation)

Durability: High resistance to mechanical stress, abrasion, water ingress, and rodents

Standards & Safety Compliance

IEC 60502-1, BS 5467, BS 6724

Flame-retardant: IEC 60332-1, LSZH: BS 7211 or client spec

ISO 9001 Quality Management, CE, RoHS available upon request

Why Choose Zhongshan Tongda?

20+ years in low voltage power cable manufacturing

300+ advanced production & testing machines

Over 3,000 product variants available, OEM supported

Flexible MOQ and fast delivery from factory

Export experience across Europe, Middle East, SE Asia, Africa

Packaging & Logistics

Coils or wooden drums per specification

Robust export packing for overseas delivery

Efficient shipping options with clear labeling

FAQs

Q: Can you produce flame-retardant or LSZH jacketted versions?
A: Yes, both FR-PVC and LSZH sheaths can be offered based on standards like IEC 60332 or BS 6724.

Q: What core sizes and configurations do you support?
A: Typical variants include 2-core, 3-core, and 4-core cables, with cross-sections from 4mm² to 400mm². Please contact us for custom requirements.

Q: Can you supply sample cables?
A: Yes, we can provide samples and technical datasheets upon request.

Product Parameter

Item	Contents
Application	power networks, underground, outdoor and indoor applications and for use in cable ducting
Voltage Rating	0.6KV/1KV
Temperature Rating	﹣15℃to﹢90℃
Conductor Material	Copper
Insulation Material	XLPE (Cross-Linked Polyethylene)
Sheath	LSZH (Low Smoke Zero Halogen)
Armour	AWA (Aluminium Wire Armour)
Insulation Colour	Natural or upon request of client
Standard	IEC 60502
Brand Name	TongDa
Place of Origin	Guangdong, China
