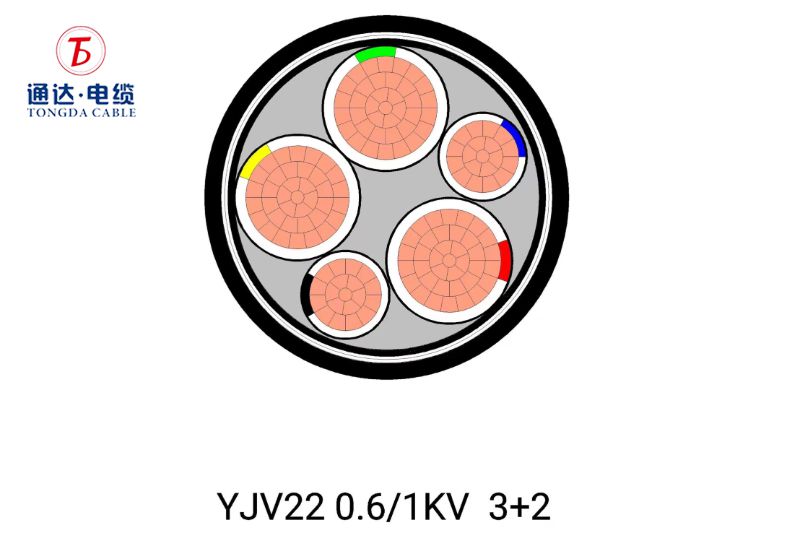

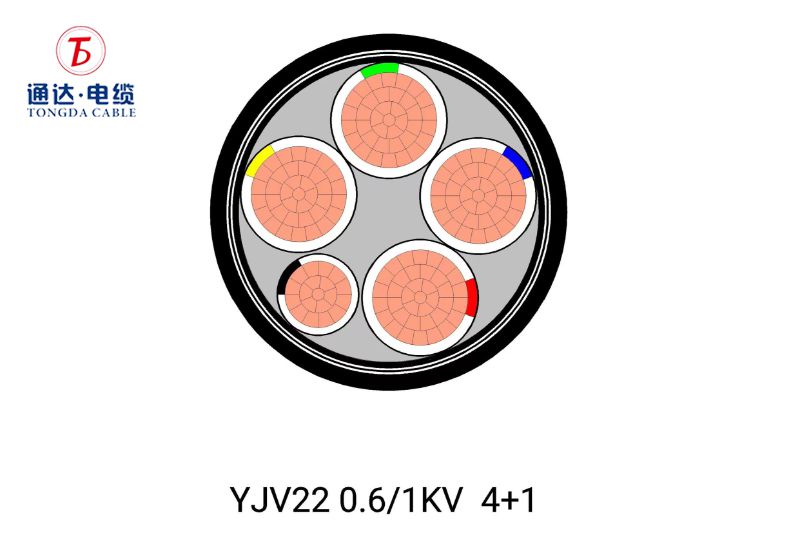

XLPE insulated steel tape armored PVC sheated power cable (YJV22)

XLPE insulated steel tape armored PVC sheated power cable (YJV22)

Application: Used in power networks, underground, outdoor and indoor application and for use in cable ducting. It can bears pulling force and pressure.

Voltage Rating: 0.6KV/1KV

Temperature Rating: -15℃to+90℃

Standard: IEC 60502

Insulation Color: Natural or upon request of client

Inquire Now

Download

Product Parameter

No.of Core	Size	Approx.OD of cable	Approx.Weight of Cable
No.of Core	mm²	mm	kg/km
2	4	15	34
	6	16	41
	10	19	55
	16	21	75
	25	24	98
	35	26	117
	50	32	147
	70	35	178
	95	40	220
	120	44	254
	150	48	286
	185	53	346
3	4	15	400
	6	16	476
	10	18	73
	16	21	926
	25	24	1248
	35	27	1570
	50	32	2314
	70	37	2987
	95	41	3873
	120	46	4713
	150	51	5789
	185	56	7018
	240	62	8871
	300	68	10830
4	4	16	473
	6	18	574
	10	21	721
	16	23	1148
	25	27	1587
	35	30	2026
	50	36	2942
	70	42	3839
	95	46	4986
	120	51	6102
	150	56	7471
	185	62	9090
