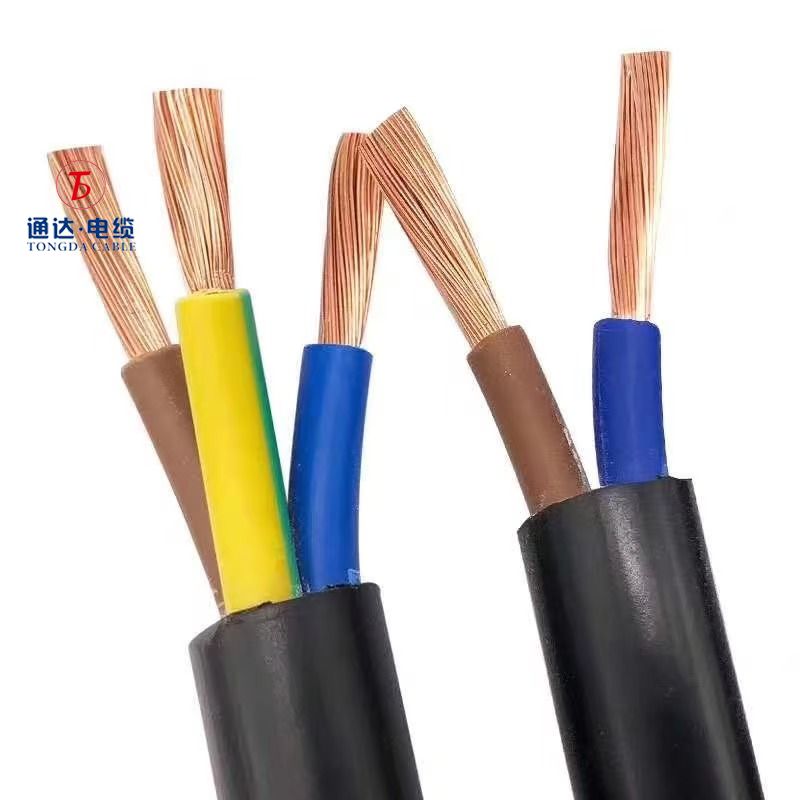

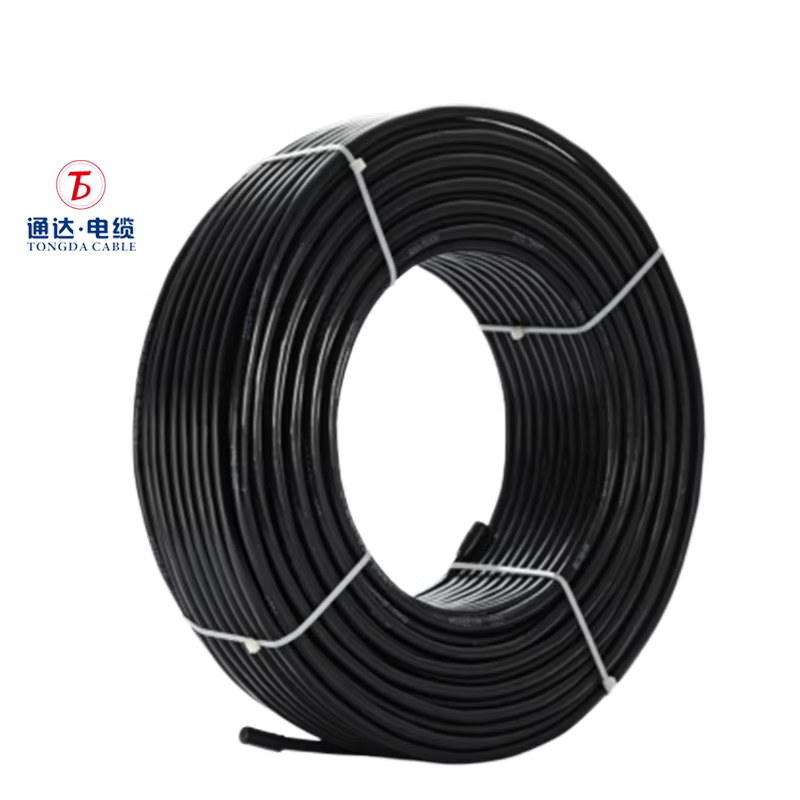

PVC insulated round flexible cable (RVV)

PVC insulated round flexible cable (RVV)

Application: Light duty flexible cable is designed for use in domestic properties, offices and kitchens. It is suitable for connecting devices with a voltage rating of 300V that are subjected to low mechanical stress such as table lamps, radios and office equipment.

Voltage Rating: 300/300V&300/500V

Temperature Rating: -15℃to+70℃

Min. laying temperature: 0℃

Standard: IEC 60227

Inquire Now

Download

Insulation Color

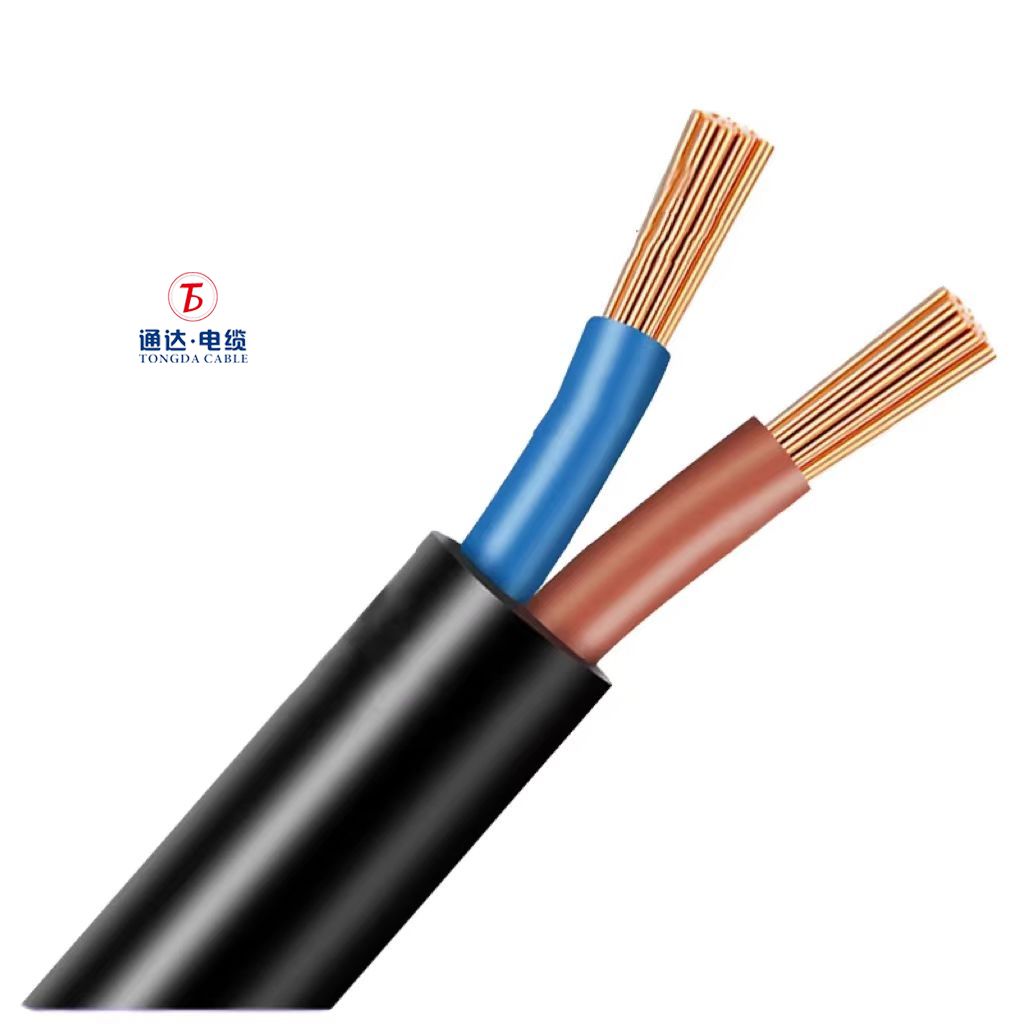

2 core: Brown, Blue

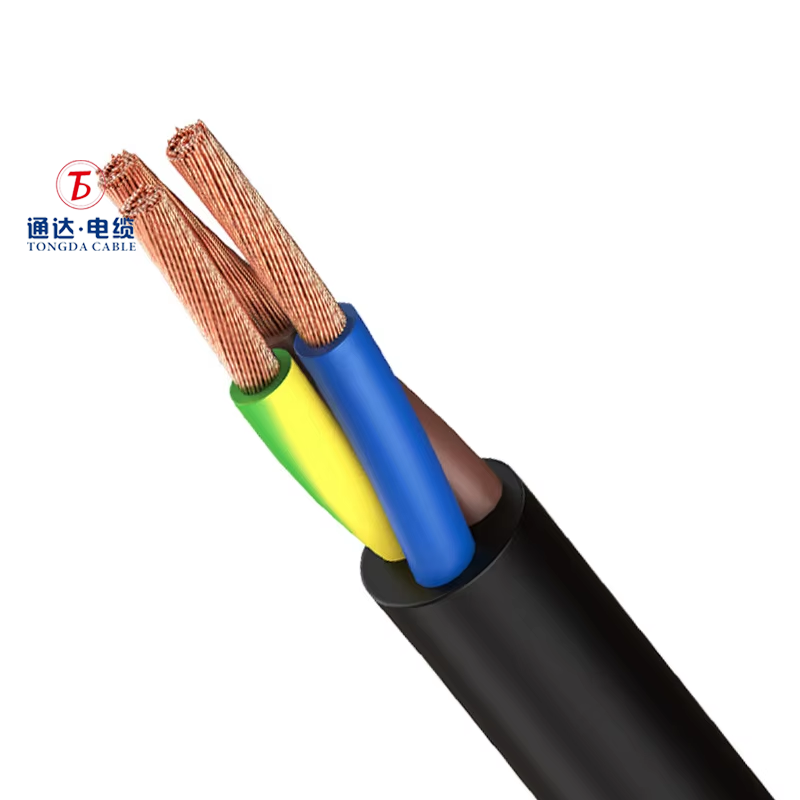

3 core: Brown, Black, Grey

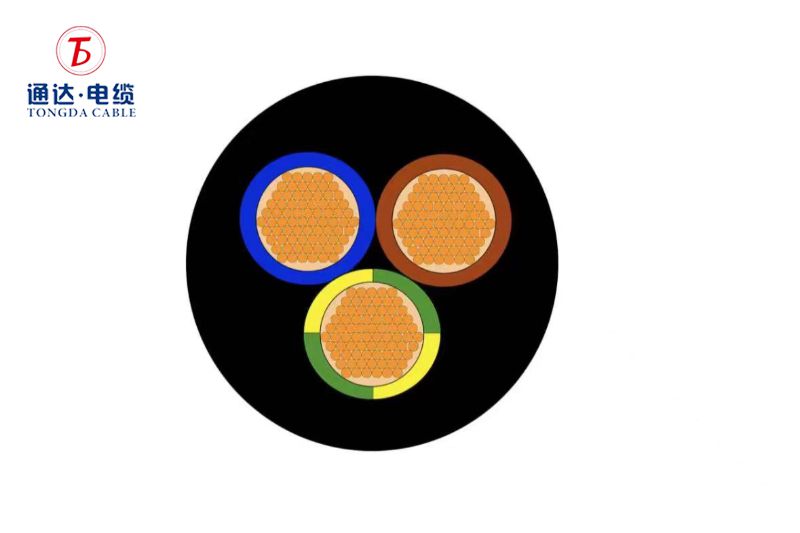

3 core (optional) : Green/Yellow, Blue, Brown

4 core: Blue, Brown, Black, Grey

4 core (optional) : Green/Yellow, Brown, Black, Grey

5 core: Green/Yellow, Blue, Brown, Black, Grey

Product Parameter

Item	Contents
Application	Light duty flexible cable is designed for use in domestic properties, offices and kitchens
Voltage Rating	300/500V
Temperature Rating	﹣15℃to﹢70℃
Conductor Material	Copper
Insulation Material	PVC (Polyvinyl Chloride)
Sheath	PVC (Polyvinyl Chloride)
Insulation Colour	Natural or upon request of client
Standard	IEC 60227
Brand Name	TongDa
Place of Origin	Guangdong, China

Get in Touch

If you can't find the electrical cable you want, please leave a message or contact us. We have a dedicated technical team to serve you.

FAQ

Q: What is the production capacity of the company?

A: The company has more than 300 sets of production, measurement, monitoring and inspection equipment with leading technology at home and abroad, and the annual production capacity can reach 1 billion yuan. The total investment of the company is 300 million yuan, the fixed assets are 250 million yuan, and the newly built modern factory covers an area of 80,000 square meters.

Q: What are the company's achievements in intellectual property?

A: The company continues to carry out technological innovation, and has obtained a number of utility model patents, such as a magnesium hydroxide fire mud extruder, cantilever tension tape machine, etc.

Q: What are the main business models of the company?

A: The company's business model includes production and processing, distribution and wholesale, investment agents, etc. .

Q: What are the registered capital and paid-in capital of the company respectively?

A: The registered capital of the company is RMB 150 million and the paid-in capital is RMB 20 million

Q: Does the company provide customized services?

A: Yes, the company provides wire and cable customization services, according to customer needs for special specifications of production.
